Like working from home

Words:
Eleanor Young

KnoxBhavan has separated its studio from its dwelling, but a relaxed feeling remains in the efficient new premises

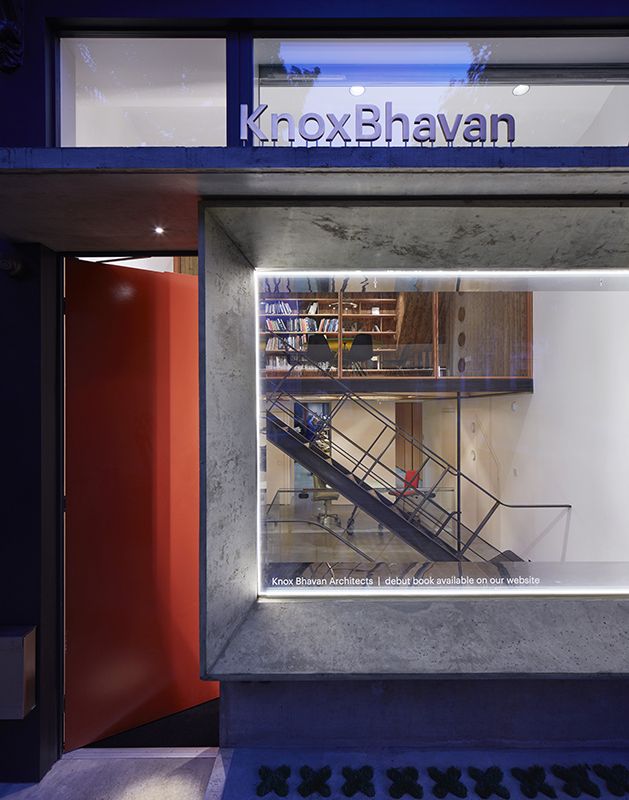

The slim edge of the concrete frame at Knox Bhavan’s Peckham studio trains the eye to the composition within.
The slim edge of the concrete frame at Knox Bhavan’s Peckham studio trains the eye to the composition within. Credit: Dennis Gilbert View

At KnoxBhavan Architects’ new Peckham studio, an outsized concrete picture frame draws passersby across a chequerboard of grass, the maker’s name perched on the canopy above – less signature or sign board, more a clue for the curious. That window to this converted house in a neat Georgian terrace offers more than most shop fronts; stairs drop away revealing a huge wooden table behind delicate lines of patinated steel banisters, models are set between doors to each side. If you bend down (is that too obviously nosy?) you can see what glitters under the ceiling, a geometric concoction of light and perforated bronze plates.

For the whole life of their firm Sasha Bhavan and Simon Knox have been nurturing their practice from their south east London home. Even when they built a studio for their close team it felt like a family enterprise with the main meeting room in their living room. It worked for their growing children, and seems to have worked for the clients whose homes they also designed.

But there was a bigger plan, perhaps for slightly larger projects but most of all to build their own home. Or more precisely two homes, one a house 10 minutes’ walk away on the plot of their first studio; the second for the practice office. Here all the lessons from the first office would be put into practice – most noticeably how to create a temperate space which didn’t demand heavy jumpers and blankets in winter and fans in the summer – though provision for this is nigh on invisible.

  • Three storeys of glass, concrete and timber, linked by a filigree of steel.
    Three storeys of glass, concrete and timber, linked by a filigree of steel. Credit: Dennis Gilbert View
  • Under the mezzanine the steel plates delineate the ply joists.
    Under the mezzanine the steel plates delineate the ply joists. Credit: Dennis Gilbert View
  • Two doors: the recessive black door leads to the flat, the tall warm red to Knox Bhavan’s office.
    Two doors: the recessive black door leads to the flat, the tall warm red to Knox Bhavan’s office. Credit: Dennis Gilbert View
  • Seen in context of the terrace it is clear the way the section has been sliced quite differently.
    Seen in context of the terrace it is clear the way the section has been sliced quite differently. Credit: Dennis Gilbert View
  • The cross of ‘grass’ into concrete give an assured parking space.
    The cross of ‘grass’ into concrete give an assured parking space. Credit: Dennis Gilbert View
12345

The old terraced house, with its warren of rooms extending into the back yard, had been owned by KnoxBhavan’s stationers. When the practice took over they started from scratch, digging down into the basement for a model room and kitchen, extending the full length of the building on the ground floor to create space for the team and splitting the top two floors between a meeting room and a flat.

Each space has a different character within the lexicon of spatial and material depth that characterises KnoxBhavan’s works. A long work station runs back through the building, flanked by storage behind Douglas fir doors. Each desk has a cupboard behind to store drawings and documents, a luxury in the modern office (one in the kink of the plan also hides away the MVHR unit). But the 8m long oak work ­station itself is a magnificent piece of engineering that can be configured in many ways. It can be a single smooth surface like a dining table. But with each desktop in two parts it can be used sitting or standing or to raise the screen for the user, all smooth from the foot pedal with a gas lift, and wiring for monitors stashed inside the legs. For drawings an extra surface pulls out to give an L-shaped desk.

On plan the office space might look like a double runway but it is far more complex. A mirrored reveal peers into the meeting room and the deep, ducted, roof is moulded up towards bright rooflights. Dappled light fills the back as red and gold carp ripple in a pool the width of the building. South-facing windows are shaded with scalloped waves of stainless steel mirror-polished fins. Soft brick courtyard walls, ground and bench are unmortared in parts, ready for creeping green ‘mind your own business’ to take root, and pleached crab apples line the back wall. Two-tone glazed green slips sink deep into the carp pool. ‘We wanted work not to be a drudge,’ says Bhavan.

  • Into the office space, computers, keyboards and lights can all be cleared away to leave one long 8m bench.
    Into the office space, computers, keyboards and lights can all be cleared away to leave one long 8m bench. Credit: Dennis Gilbert View
  • But in use the lift desks allow movement and changes in posture.
    But in use the lift desks allow movement and changes in posture. Credit: Dennis Gilbert View
  • A central column does the lifting and also conceals much of the wiring.
    A central column does the lifting and also conceals much of the wiring. Credit: Dennis Gilbert View
  • The mezzanine office is illuminated by its green table. A timber lining re-uses the wood from the stationers that was previously on the site.
    The mezzanine office is illuminated by its green table. A timber lining re-uses the wood from the stationers that was previously on the site. Credit: Dennis Gilbert View
  • The mezzanine geometry from below.
    The mezzanine geometry from below. Credit: Dennis Gilbert View
  • Re-used bookshelves and a plain soffit in the lower ground floor.
    Re-used bookshelves and a plain soffit in the lower ground floor. Credit: Dennis Gilbert View
  • Store cupboards under the staircase.
    Store cupboards under the staircase. Credit: Dennis Gilbert View
  • A magnetic wall and kitchen make for comfortable discussions on designs.
    A magnetic wall and kitchen make for comfortable discussions on designs. Credit: Dennis Gilbert View
  • The roller shutter was deemed necessary but sits as plain, industrial roll inside the building rather than an unfriendly deterrant outside the office.
    The roller shutter was deemed necessary but sits as plain, industrial roll inside the building rather than an unfriendly deterrant outside the office. Credit: Dennis Gilbert View
  • Aluminium fins cantilever out over the pool of carp.
    Aluminium fins cantilever out over the pool of carp. Credit: Dennis Gilbert View
  • The brick back garden is reached by stepping stone. But seen at all times from the office.
    The brick back garden is reached by stepping stone. But seen at all times from the office. Credit: Dennis Gilbert View
1234567891011

The circular concrete stepping stone came from KnoxBhavan’s old office. Other attempts at re-use were more tricky, the stationery shop’s wooden panelling covers the meeting room walls but cost almost as much to recondition as to make new, as did a nearly-new island unit in the flat that clients were going to chuck. Ideas are easier to re-use, so marble is in evidence in the office loo and shower. It is in their own home, so too are the invitingly generous tables for office lunches and for the flat upstairs, and doors slide into wall spaces.

Knox and Bhavan’s son Fergus, who is completing his Part 3 at the Bartlett, took the lead on the super-thin mezzanine that squeezes in an extra layer for a (slightly bouncy) meeting room at the front of the building – with structural engineer Tim Lucas of Price and Myers. Fergus water jet cut the steel straps and hook scarf jointed them as concentric squares. They act in tension to support ply joists mid beam and tie back to the ring beam. The shapes are picked up in light diffusers of folded brass plates.

KnoxBhavan was bound up with creating every object – from rudimentary prototypes of the lifting desks to working out details of the concrete pour of the frames at the front with their six workmen. You can’t clearly separate making from design here, nor beauty from the everyday. It is the sort of place you’d want on your street, to peer into and wonder about.


IN NUMBERS

Gross internal area 170m2

Construction cost £300,000

Cost per m£1764

Credits

Architect Knox Bhavan Architects

Client Knox Bhavan Architects

Structural Engineer Tim Lucas, Price & Myers

Main Contractor Direct labour, site managed by Knox Bhavan

Services Engineer Paul Bastick Associates
