Maggie's Cardiff is a different world

Words:
Eleanor Young

Dow Jones Architects has added another welcoming, comforting space to the Maggie’s pantheon with its timber-rich centre in Cardiff

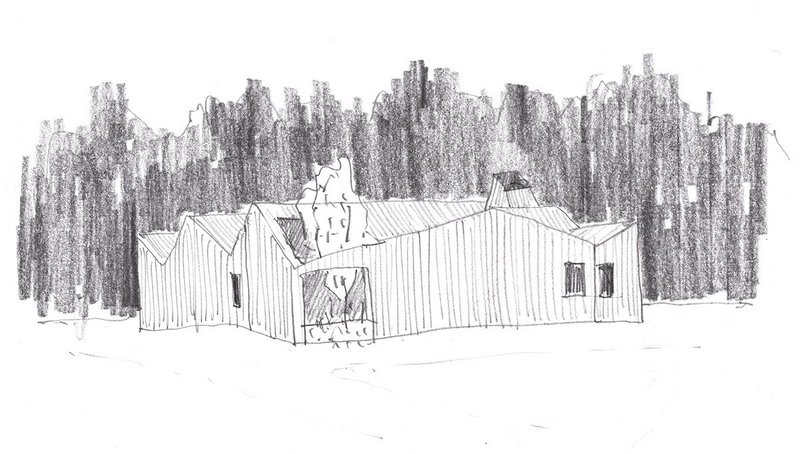

Early sketch
Early sketch Credit: Dow Jones Architects

Designing for a car park spells the birth of many of the Maggie’s cancer caring centres. Most hospitals are still accretions of extensions and additions, corridors and walkways. Velindre Cancer Centre, in Whitchurch, Cardiff, is no exception and in its parking lot Dow Jones has created a strong form that holds its own in this unpromising nowhere place, Maggie's Cardiff. More importantly when you are inside you are in a completely different world.

Maggie’s centres are places for those with cancer, or affected by it, to drop in and have a cup of tea, talk to those who understand about cancer, go to a class or meet for some therapy. They are places were there is time for questions and a soothing beauty and, hopefully, a sense of home. The RIBA Journal has covered many of them, since Maggie Keswick Jencks was involved in setting up the first one when she herself had cancer, through commissions of architectural stars such as Frank Gehry and Rem Koolhaas, pulled in by her writer husband Charles Jencks.

Dow Jones has been working on a Maggie’s for Whitchurch since 2011, initially next door on a site where the whole hospital was due to be rebuilt. Delays and a potential new site for the hospital, plus money from the Welsh government for this Maggie’s, meant it has gone ahead with an immediate solution on an unpromising triangular site, which might eventually change. This is not strictly a temporary building but its budget reflected a more limited life span and it is smaller than many Maggie’s (250m2 compared to 350m2 elsewhere).

Sandwiched between the car park and the angled brick pavilions of the derelict Whit­church psychiatric hospital, the centre borrows the neighbouring tree line as a green background to soften the impact of the ranks of cars. The peaks and troughs of the roof give the building character – inside and out – and make it less of a visual barrier. Down Jones’ reference was the hills of the Brecon Beacons. Its domestic scale denies the weathering steel an industrial reading, but it has a strong presence, its material and sculptural quality emphasised by bollards designed by Anthony Gormley.

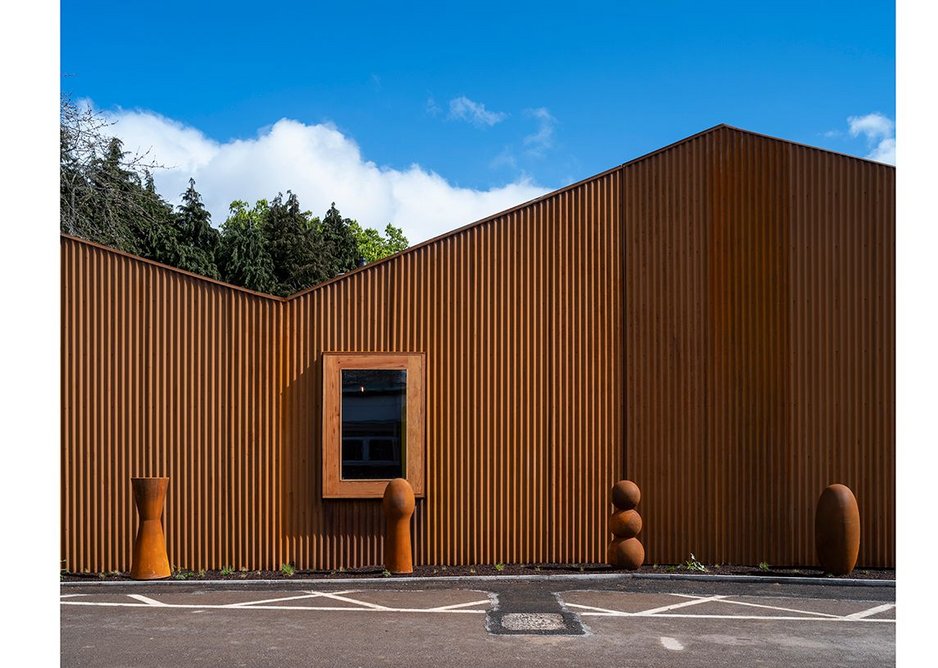

  • Antony Gormley’s bollards bring curves to strong lines of the Maggies.
    Antony Gormley’s bollards bring curves to strong lines of the Maggies. Credit: Anthony Coleman

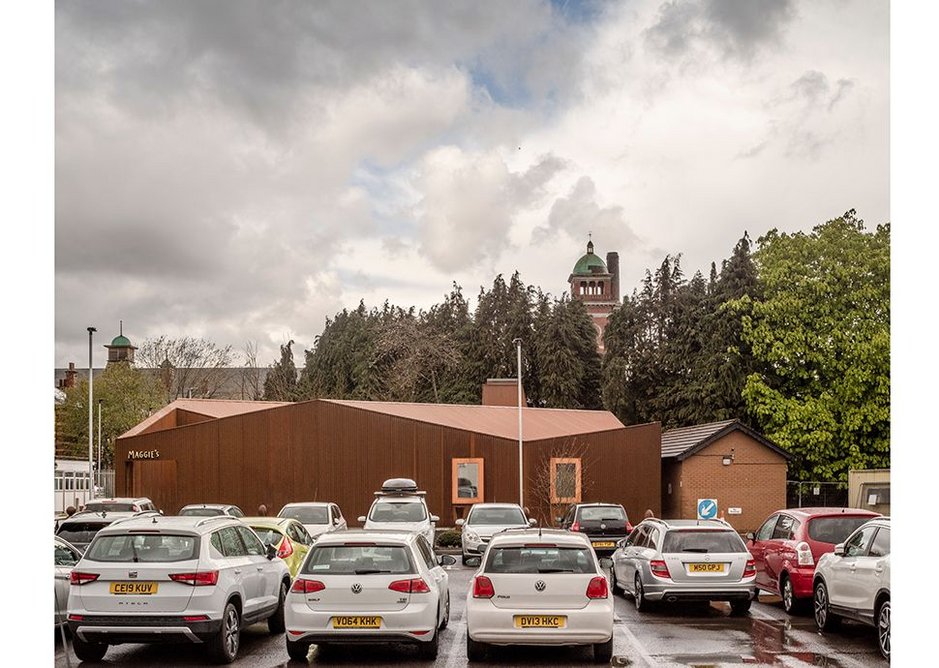

  • Maggies Cardiff at Velindre Cancer Centre in Whitchurch, designed by Dow Jones, a strong form giving a sense of place to the nowhere land of the car park.
    Maggies Cardiff at Velindre Cancer Centre in Whitchurch, designed by Dow Jones, a strong form giving a sense of place to the nowhere land of the car park. Credit: Anthony Coleman

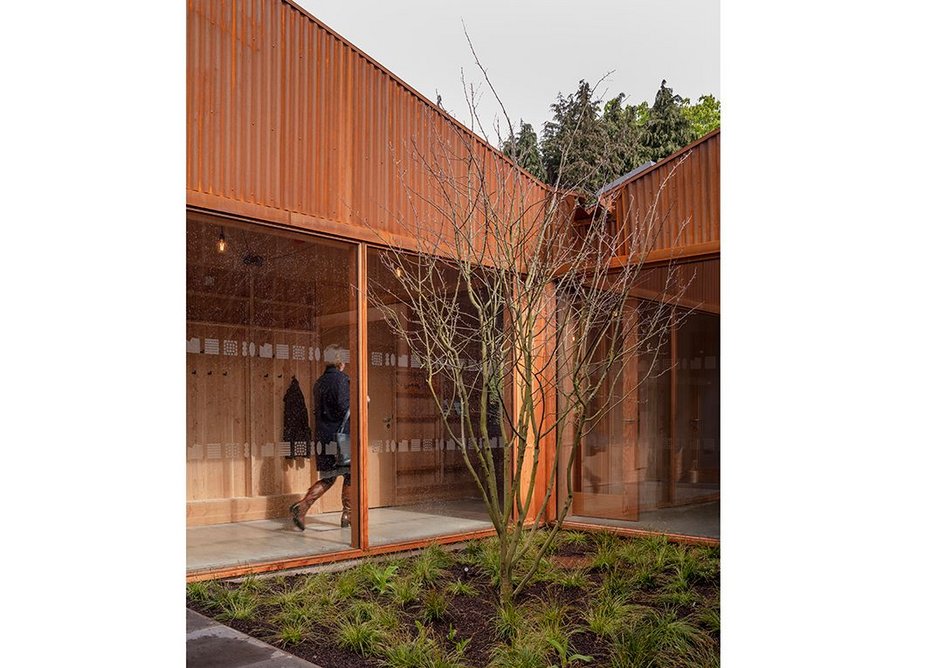

  • The green of the courtyard is enclosed by the unexpected gables generated by the series of roof pitches.
    The green of the courtyard is enclosed by the unexpected gables generated by the series of roof pitches. Credit: Anthony Coleman

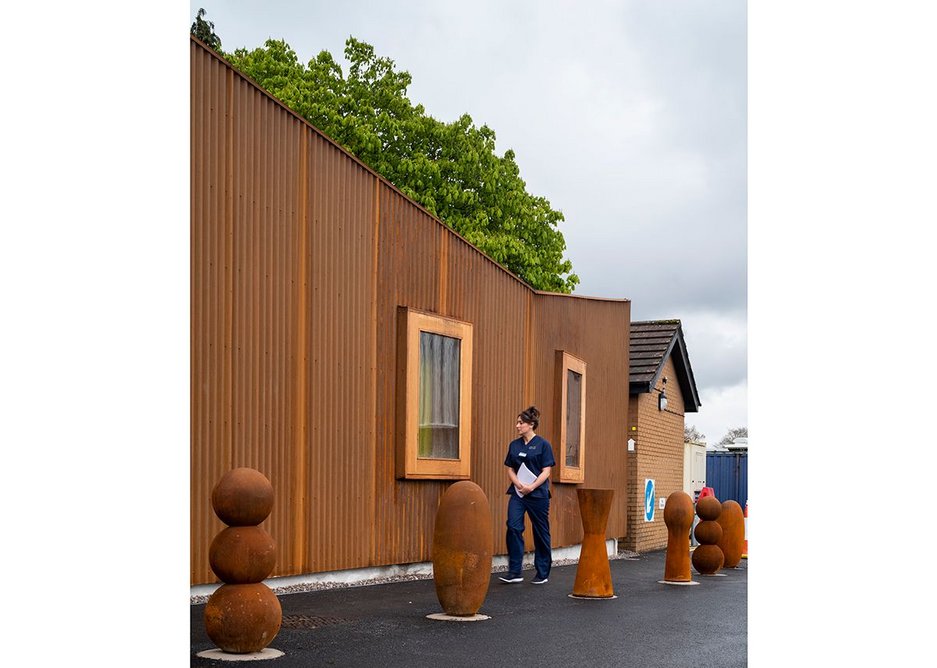

  • Containers and small buildings clutter the space around the back of Velindre Cancer Centre. The Maggies centre provides a more definite edge
    Containers and small buildings clutter the space around the back of Velindre Cancer Centre. The Maggies centre provides a more definite edge Credit: Anthony Coleman

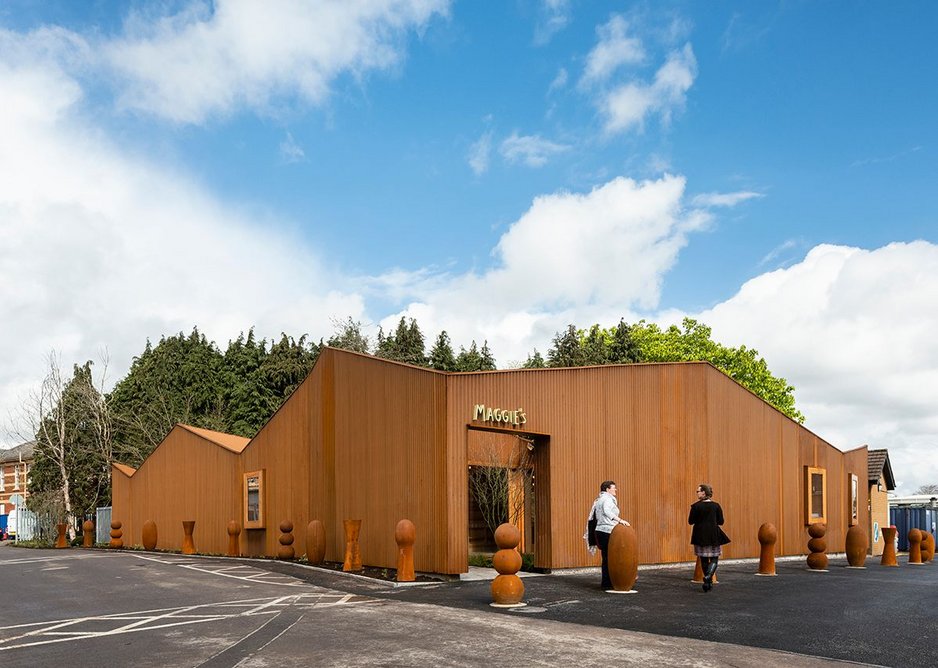

  • The entrance at Maggies Cardiff takes you straight into a protected courtyard.
    The entrance at Maggies Cardiff takes you straight into a protected courtyard. Credit: Anthony Coleman

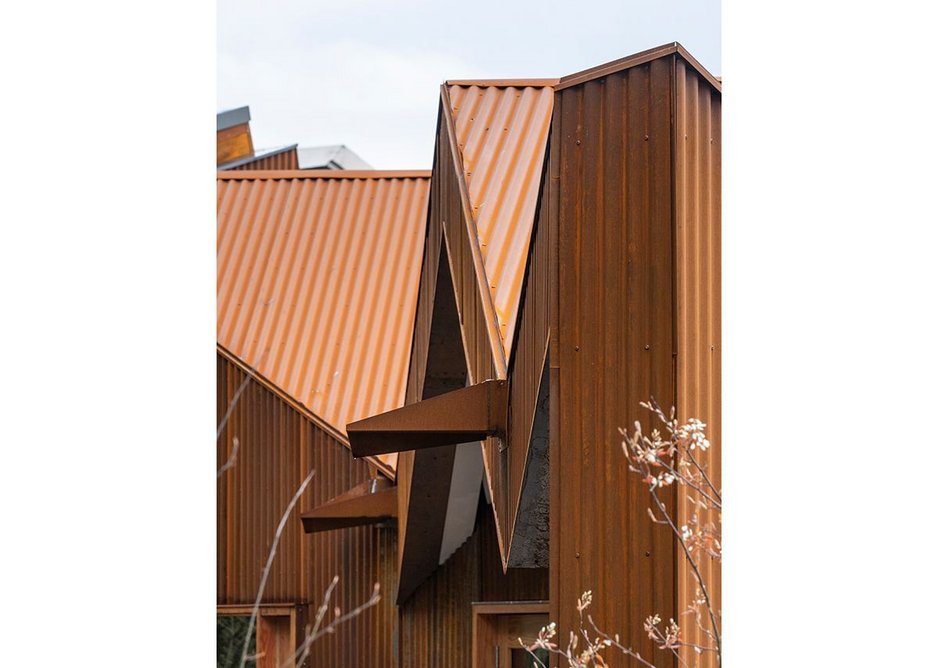

  • Water spouts off the rooves will shoot the rainfall out into drains.
    Water spouts off the rooves will shoot the rainfall out into drains. Credit: Anthony Coleman
123456

Step through the portal into a small, protected, courtyard and you are immediately in a different world. Beyond the tree climbing through to the sky you see into the cross laminated timber interior and lofty landscape of pitched soffits marked out with timber beams. Once inside, as with other Maggie’s, the familiar process of tea making takes centre stage with kitchen unit and table. But your gaze is drawn out to the trees at the back of the building, under the canopy of the extruded roof scape. Other spaces flow from the centre, a yoga studio/activity room with double doors, rooms for therapy or private discussion, a small office. All that is not visible are two more intimate spaces.

One is made by the other. A tall, chimney-like volume rises up through the tea room to the roof. Step through the gently draped Welsh curtain and you are enclosed in timber cwtch (Welsh for cuddle or cubbyhole), the light coming down from high in the roof above. The wide bench doubles as a space to lie down. It is like being inside a huge chimney breast – and was inspired by a 16th century Welsh farm house. It forms the other hidden space, at the end of the building; two chairs gathered in conversation in front of a stove and its tiled back drop.

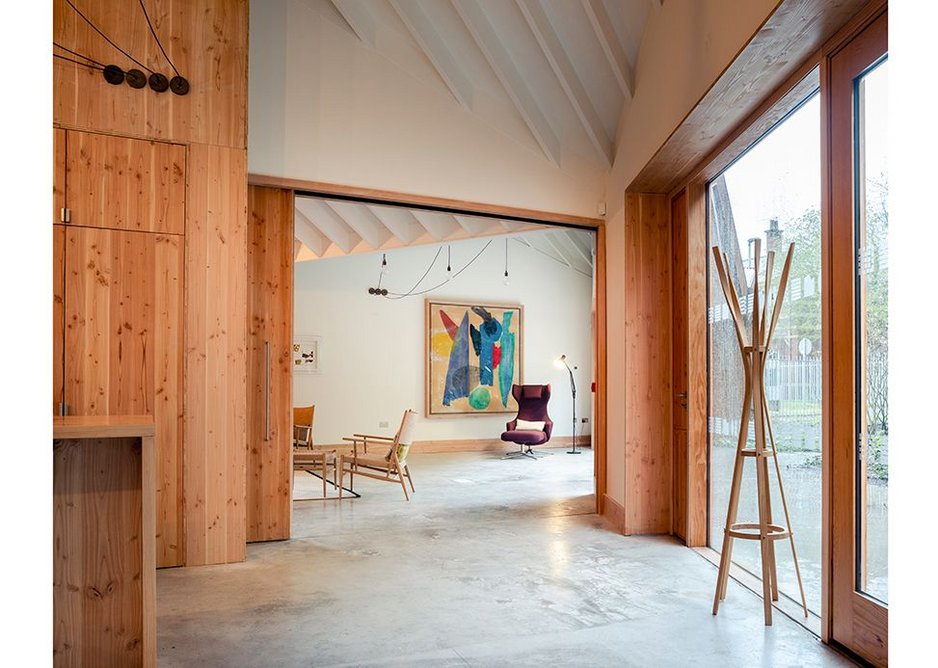

  • A sliding door means the studio space can be opened up to add to the main space or closed for yoga or art activities.
    A sliding door means the studio space can be opened up to add to the main space or closed for yoga or art activities. Credit: Anthony Coleman

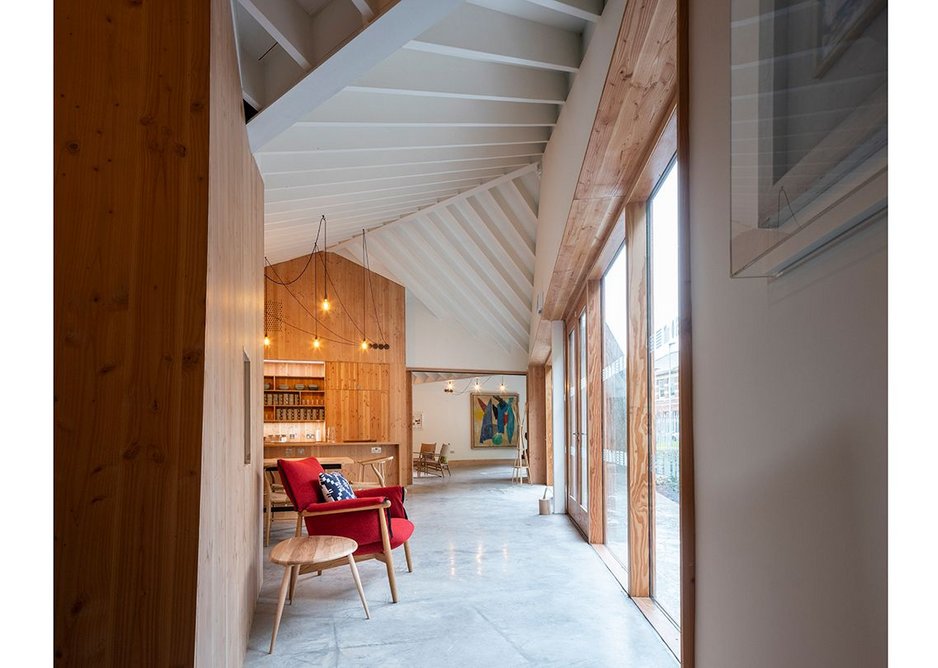

  • Even in a fairly open plan building Dow Jones has made little spaces.
    Even in a fairly open plan building Dow Jones has made little spaces. Credit: Anthony Coleman

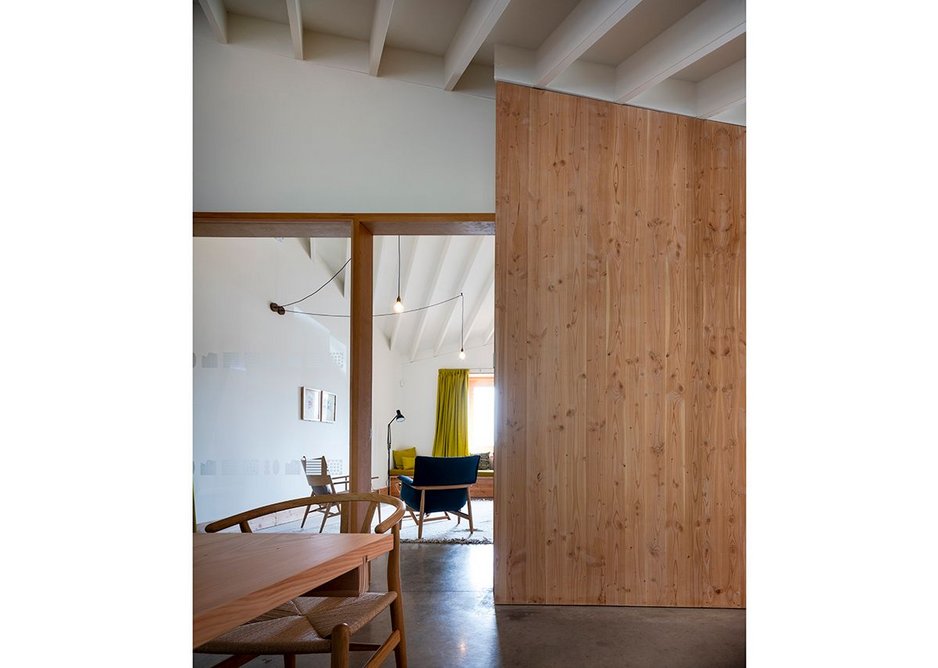

  • Deep frames to the door and glazing to the small rooms off the main space.
    Deep frames to the door and glazing to the small rooms off the main space. Credit: Anthony Coleman

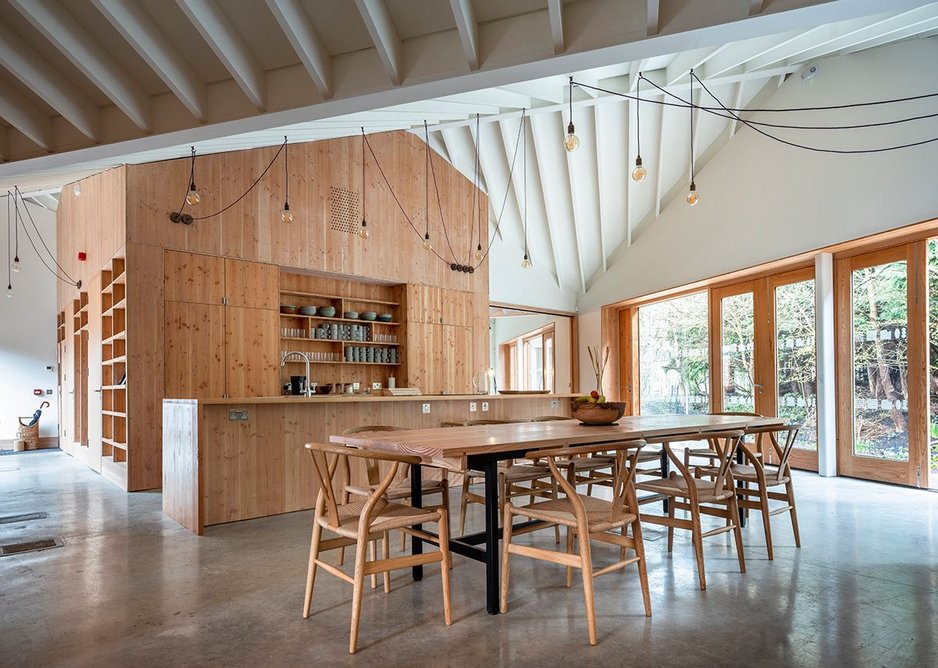

  • Exposed rafters rest on white painted steels about the CLT walls giving a lofty space above the Maggies’ kitchen table.
    Exposed rafters rest on white painted steels about the CLT walls giving a lofty space above the Maggies’ kitchen table. Credit: Anthony Coleman

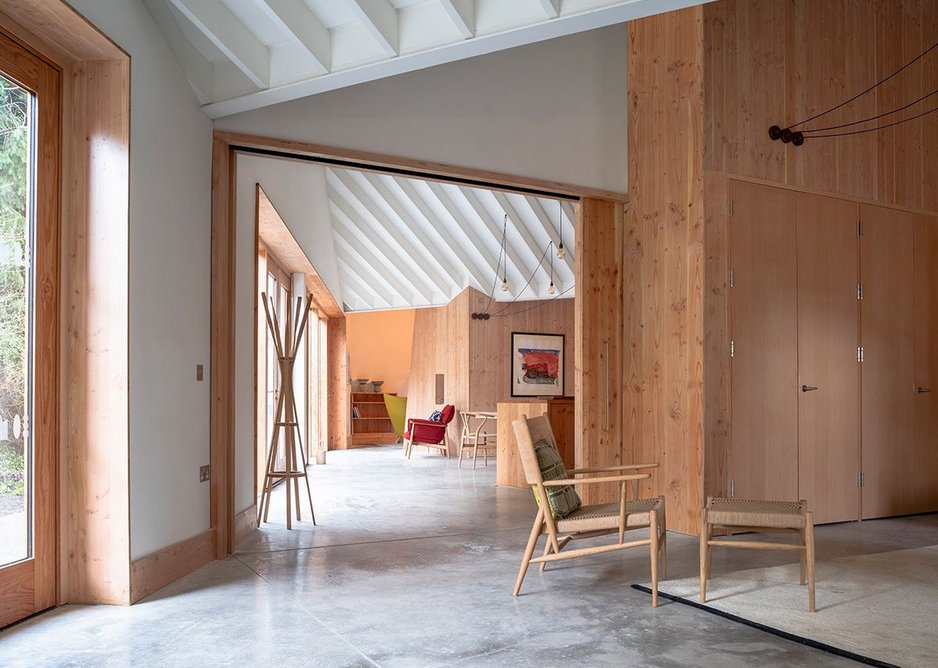

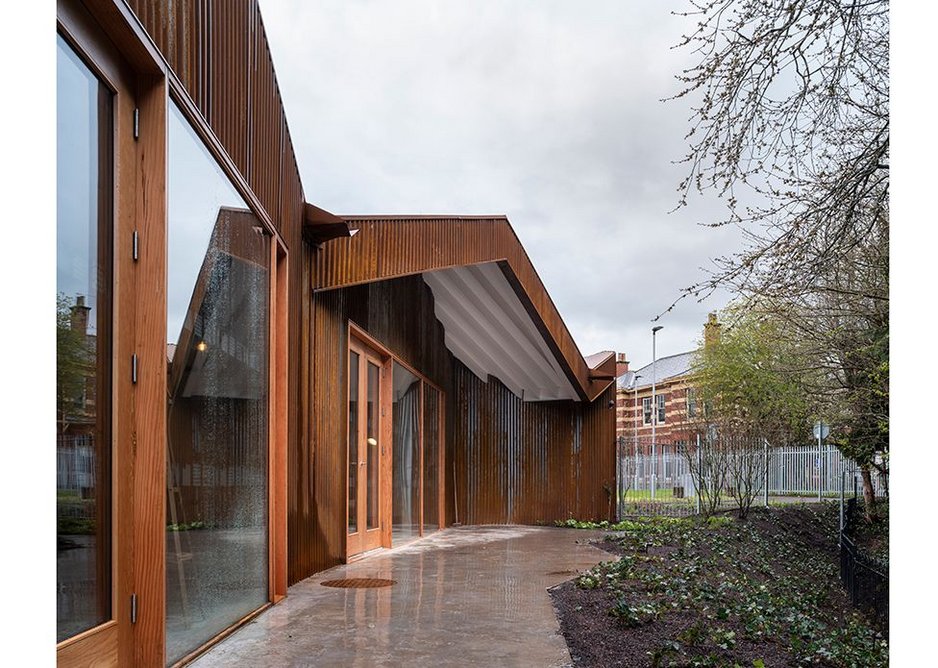

  • Along the northern edge the building opens up onto a small terrace and the hedgeline of the abandoned Whitchurch Hospital next door.
    Along the northern edge the building opens up onto a small terrace and the hedgeline of the abandoned Whitchurch Hospital next door. Credit: Anthony Coleman

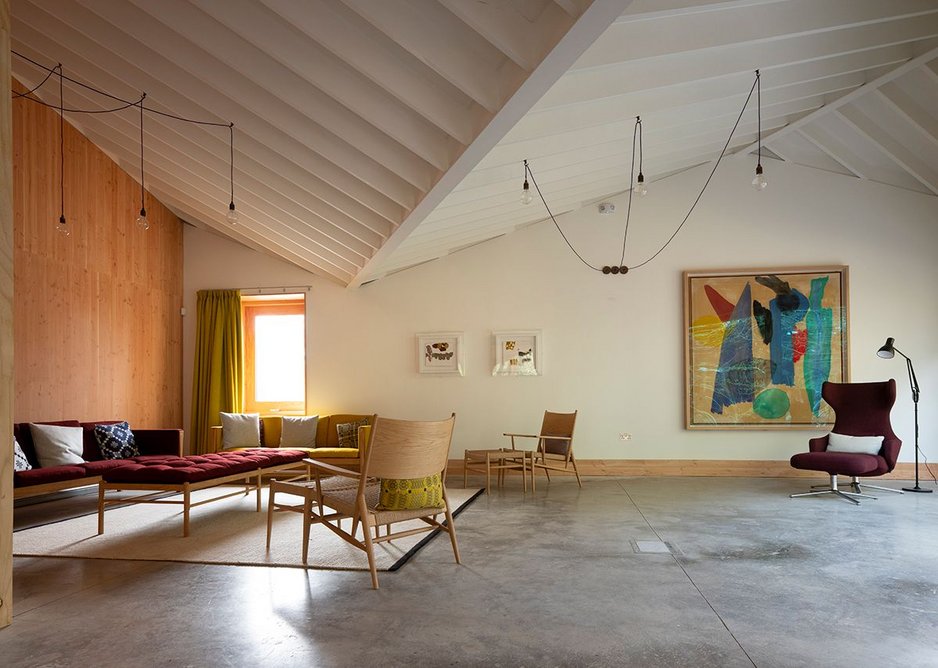

  • Studio space.
    Studio space. Credit: Anthony Coleman
123456

The pressures of build and budget are visible where roof angles and wall meet, in quite ordinary toilets, in a cupboard where the shelves function rather than delight – things barely noticeable in buildings less special than this. The biggest pressure has been on space. The building is hard up against car park, roads and Velindre’s mortuary and at the back only barely steals space for a narrow outside terrace.

Dow Jones has made the most of the limitations, giving a sense of depth with deep window mullions, door frames and skirting boards. As with other Maggie’s centres the textiles and crockery, the domestic elements of the space, are very important. Mug and plates by Lisa Krigel look like rough Bernard-Leach-style pottery but are smooth to the touch while the Welsh blankets, with their reversible weave, are used for cushions and curtains too. These give the space a more, familiar, personal sense of someone making the space friendly. Outside, generous rain­water spouts shoot away from the building; delicate drain covers accept the wet.

These small things matter as much as the big moves. It is only when you step away and into the hospital again that you realise the relief the building itself brings.

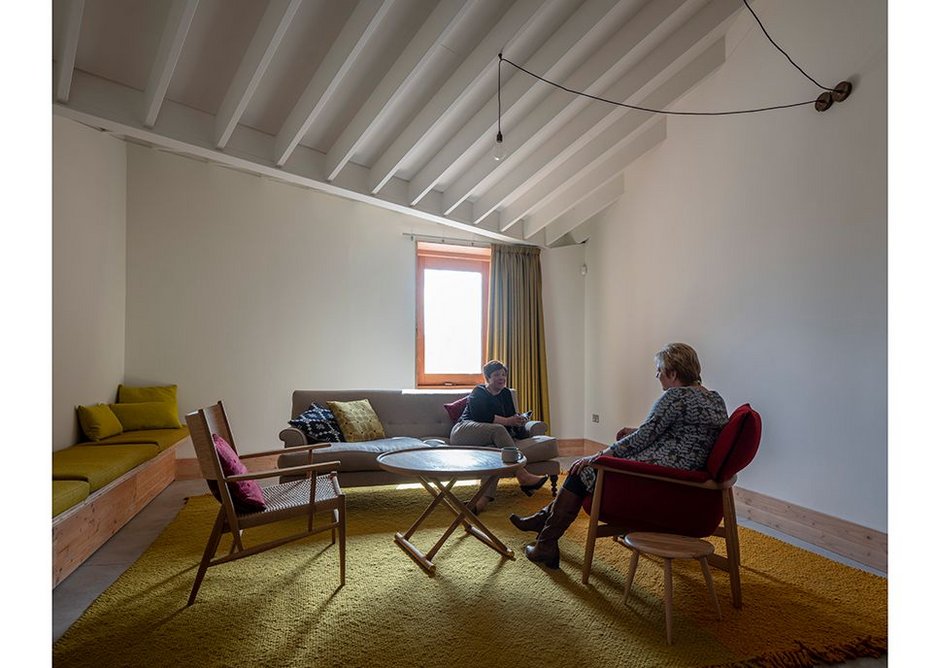

  • Deeping timber skirting boards turn in into a bench.
    Deeping timber skirting boards turn in into a bench. Credit: Anthony Coleman

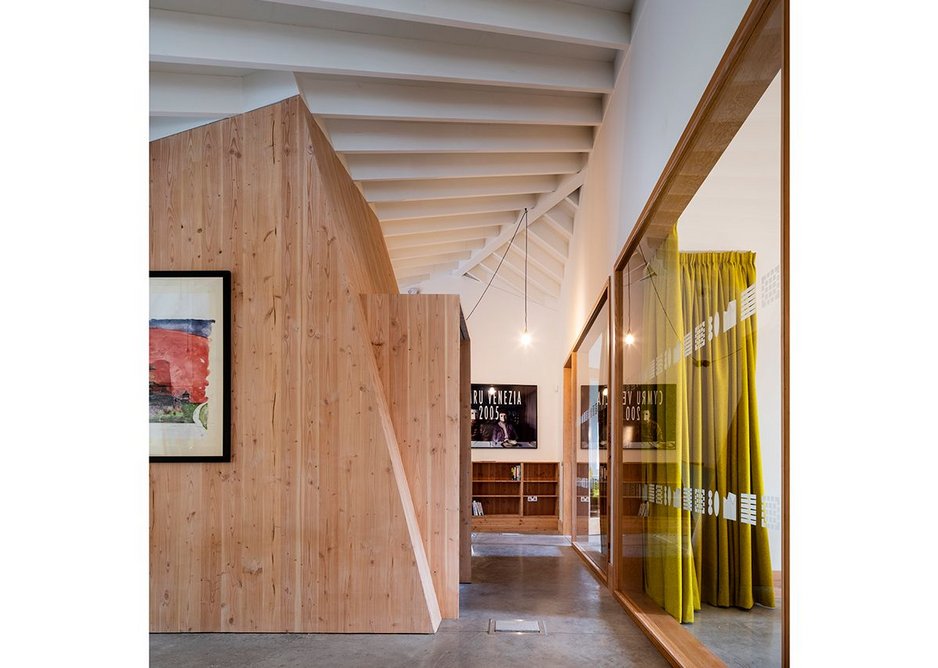

  • The chimney-like form of the cwtch.
    The chimney-like form of the cwtch. Credit: Anthony Coleman

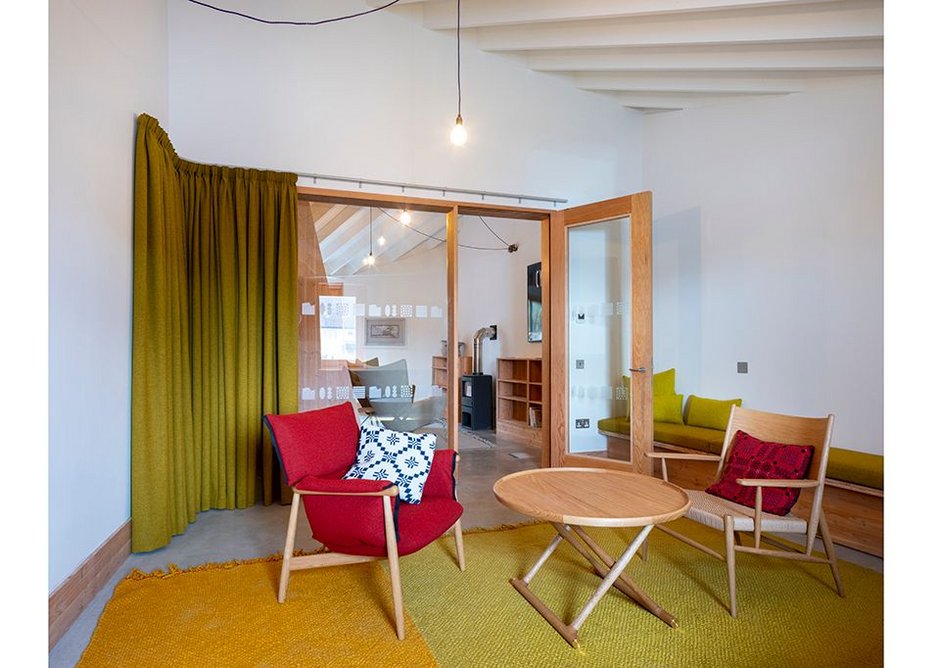

  • The smaller rooms can be open or gradually closed down with curtain and door.
    The smaller rooms can be open or gradually closed down with curtain and door. Credit: Anthony Coleman

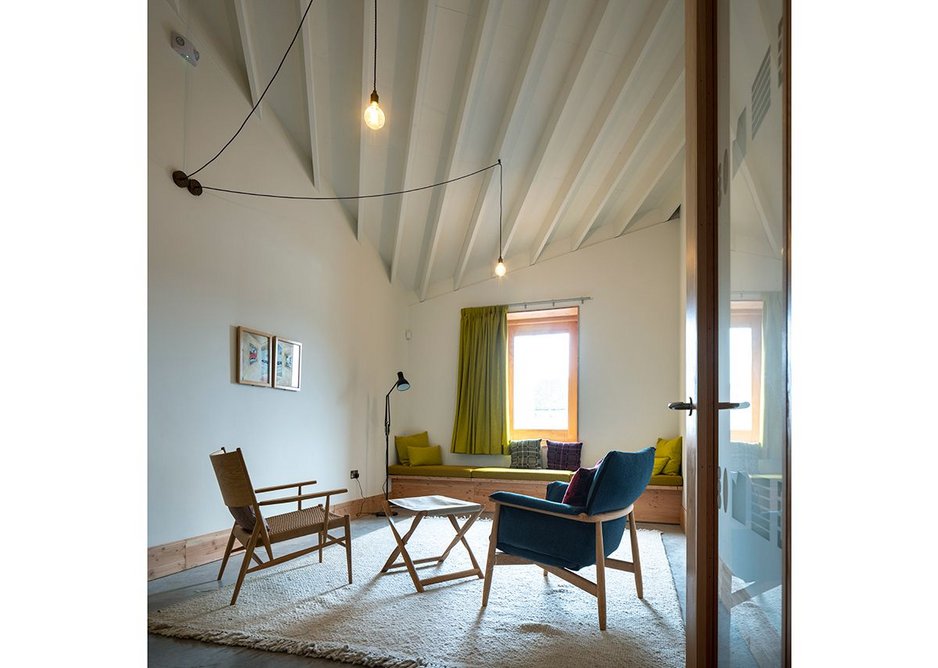

  • As in many Maggies the textiles are very important. Here bright green lifts the room.
    As in many Maggies the textiles are very important. Here bright green lifts the room. Credit: Anthony Coleman

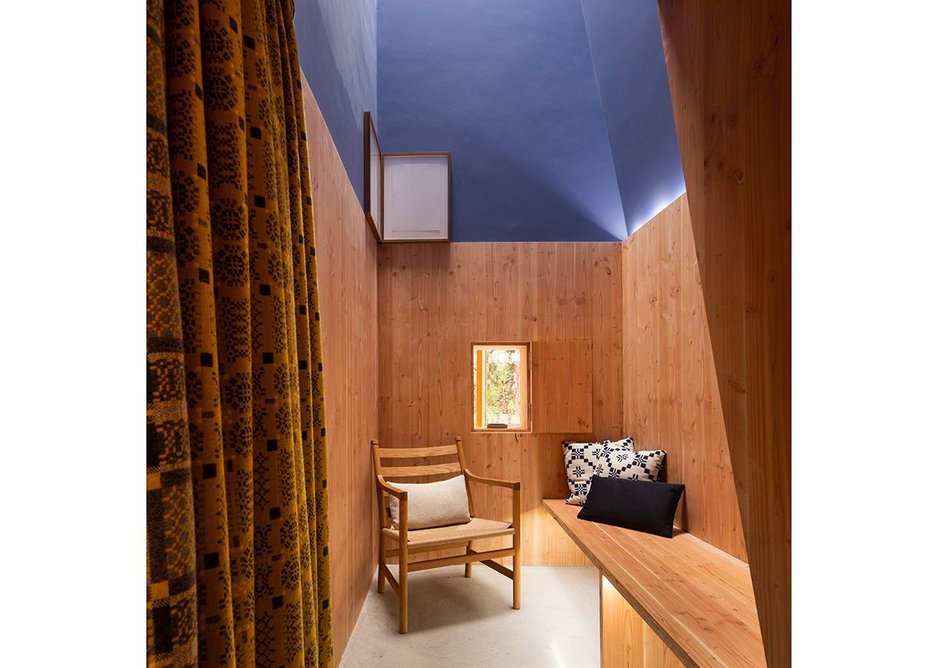

  • Inside the cwtch, timber to head height then ascending blue. Curtain and cushion covers are designed from Welsh blankets.
    Inside the cwtch, timber to head height then ascending blue. Curtain and cushion covers are designed from Welsh blankets. Credit: Anthony Coleman
1234567

Architect Dow Jones Architects

Structural engineer Momentum

M&E consultant MOTT MACDONALD

Quantity surveyor RPA Cardiff

CDM coordinator CDM Scotland

Approved building inspector Buttler and Young

Main contractor Knox and Wells

CAD software used Vectorworks
