Newton cavity drain membrane system installed in London vaults

Newton specialist contractor Stonehouse was brought in to waterproof an historic Grade II listed network of underground structures north of the River Thames

In association with
The listed vault waterproofing involved protecting four vaults beneath the A40 motorway.
The listed vault waterproofing involved protecting four vaults beneath the A40 motorway.

Stonehouse Property Care has waterproofed four impressive underground vaults for service provider KPMG for use as commercial spaces.

The Grade II listed structures lie beneath the streets of central London, a short walk from Smithfield Market and St Paul’s Cathedral. They form part of an impressive below-ground infrastructure network and are each over four metres in height.

The Newton Cavity Drain Membrane (CDM) system offers the ideal waterproofing solution for historic, listed buildings. Maintainable and robust, the system requires minimal fixings to walls and so avoids damaging the structure. It is a reversible system, which is important for listed buildings that may need to be returned to their original condition in the future.

  • Careful detailing was required in the tricky space.
    Careful detailing was required in the tricky space.

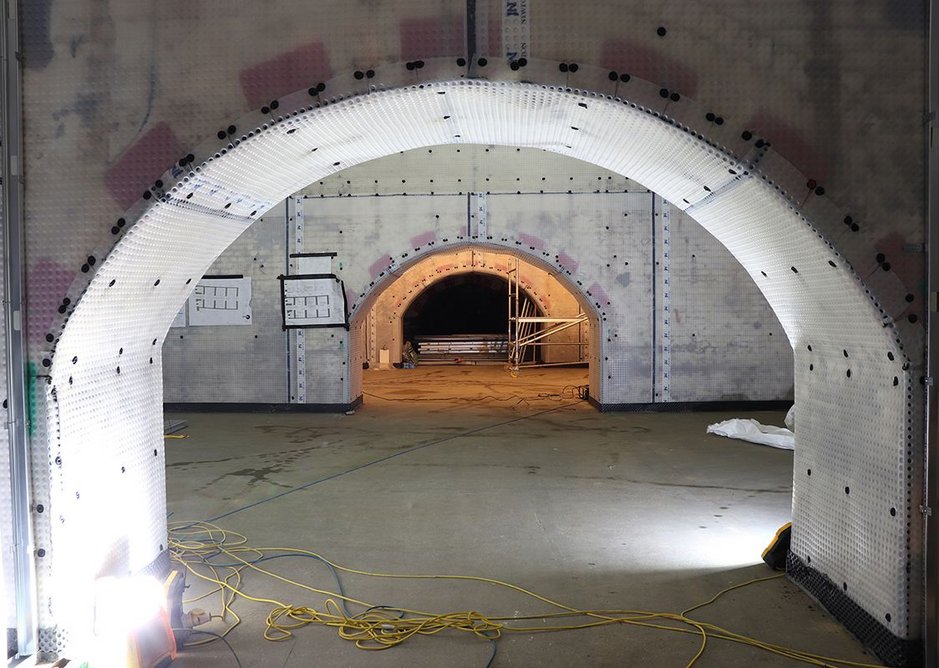

  • The network of vaults extends a long way beneath the streets of London.
    The network of vaults extends a long way beneath the streets of London.

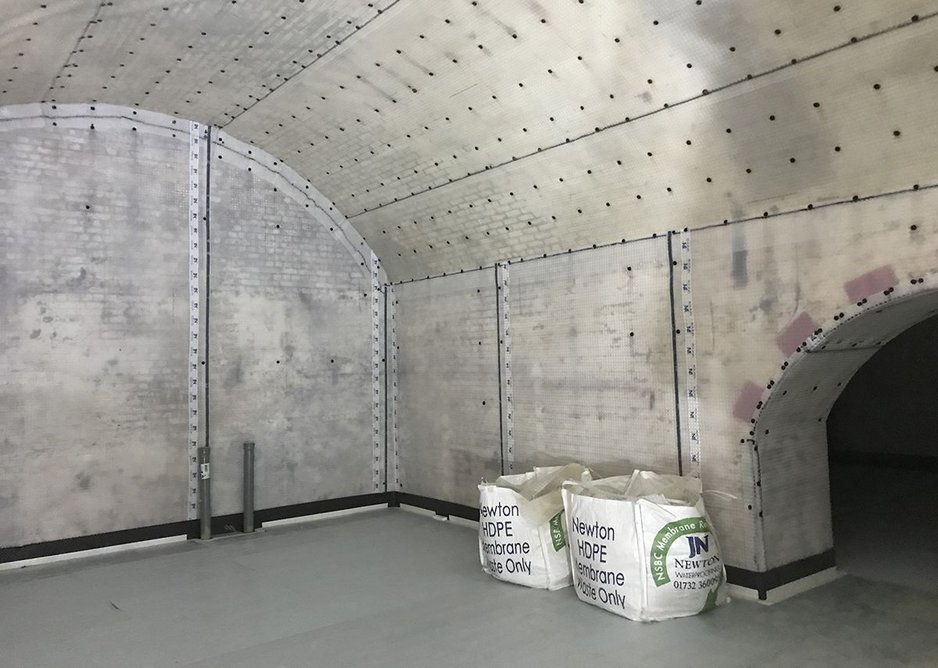

  • Stonehouse utilised Newton’s Recycling Service for waste membrane.
    Stonehouse utilised Newton’s Recycling Service for waste membrane.

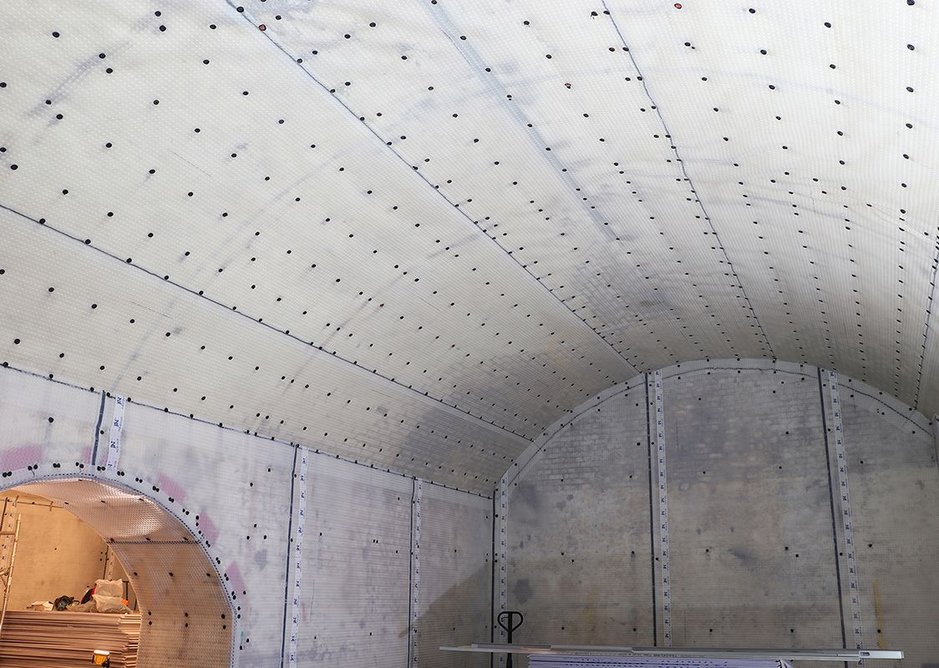

  • The finished cavity drain installation was exceptionally neat.
    The finished cavity drain installation was exceptionally neat.
1234

Stonehouse's installation of a full Newton CDM system to the vaults, included:

  • Fitting a 508 mesh membrane to the walls, for a finest plaster finish.
  • Fitting a 508 membrane and Fibran XPS 500-C insulation boards to the floor.
  • Basedraining channels to direct any captured water towards two Titan-Pro sump chambers, each containing two NP400 pumps.
  • Using a Victron Inverter and a NorthStar battery for reliable back-up power.

Stonehouse completed the complex and detailed cavity drain installation with precision, resulting in an exceptionally neat waterproofing system, and proved the benefits of using a specialist waterproofing contractor.

For more information and technical support, visit: newtonwaterproofing.co.uk



Contact:

01732 360095

tech@newtonwaterproofing.co.uk
