Illuminating stuff: The new daylighting standard

Despite uncertainties around Brexit, by the end of 2019 the UK will adopt the new European Standard that deals with daylight in buildings. What could it mean for your project?

In association with
Daylight design incorporated into the UK Hydrographic Office (UKHO) in Taunton, Somerset. Two hundred modules of the VELUX Modular Skylight system were incorporated into the lighting and ventilation design. AHR architects.
Daylight design incorporated into the UK Hydrographic Office (UKHO) in Taunton, Somerset. Two hundred modules of the VELUX Modular Skylight system were incorporated into the lighting and ventilation design. AHR architects.

The new European Standard EN 17037 deals with daylight in buildings. It is the first Europe-wide standard to deal exclusively with the design for, and provision of, daylight. EN 17037 replaces a patchwork of standards across different European countries or provides one where no existing standard is present.

Daylight is important for the health and well-being of building users, for providing sufficient illumination to carry out tasks and for making a connection with the outdoors. Providing appropriate levels of daylight also helps save energy by not relying on artificial lighting as often. All these factors have driven EN 17037.

What are the existing daylight design standards?

BS 8206-2:2008 is the code of practice for daylighting. As it is a British Standard, it applies to the UK only and gives recommendations for daylight design in buildings, including how electric lighting can be designed in conjunction with daylight.

EN 17037 deals exclusively with daylight and includes other methods of calculation for different design parameters that don’t feature in BS 8206-2. That means the new European Standard can be used to assess daylight design in buildings for accreditation schemes such as the WELL Standard.

Some existing European Standards include daylight as a factor - for example, EN 12464-1 and EN 15193 - however, both of these looks at it in the context of electric lighting provision, so EN 17037 is truly unique in focusing on the quantity and quality of daylight for building users.

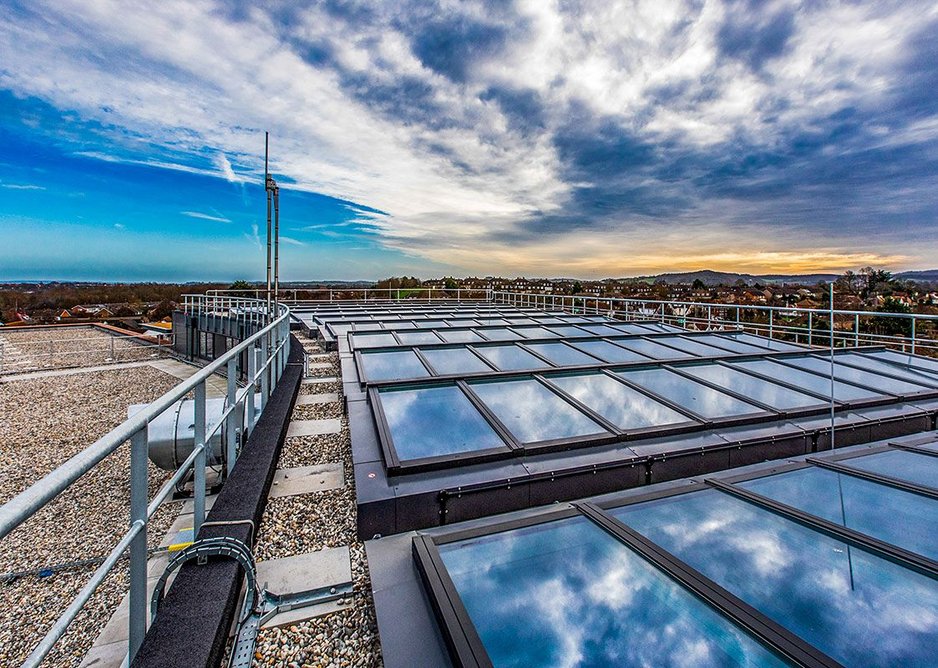

  • VELUX modular skylights on the roof of UKHO, one of the world's leading geospatial information offices that provides data to mariners and maritime organisations.
    VELUX modular skylights on the roof of UKHO, one of the world's leading geospatial information offices that provides data to mariners and maritime organisations.

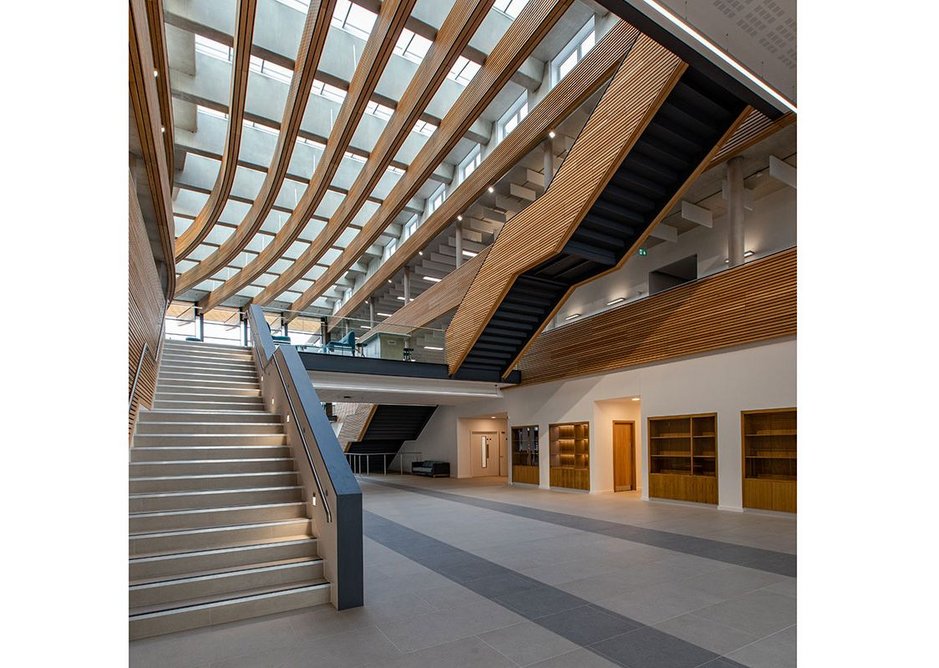

  • VELUX at UKHO: modularised and prefabricated, the skylights simplify a complex specification for natural daylight, ventilation and modern aesthetics.
    VELUX at UKHO: modularised and prefabricated, the skylights simplify a complex specification for natural daylight, ventilation and modern aesthetics.

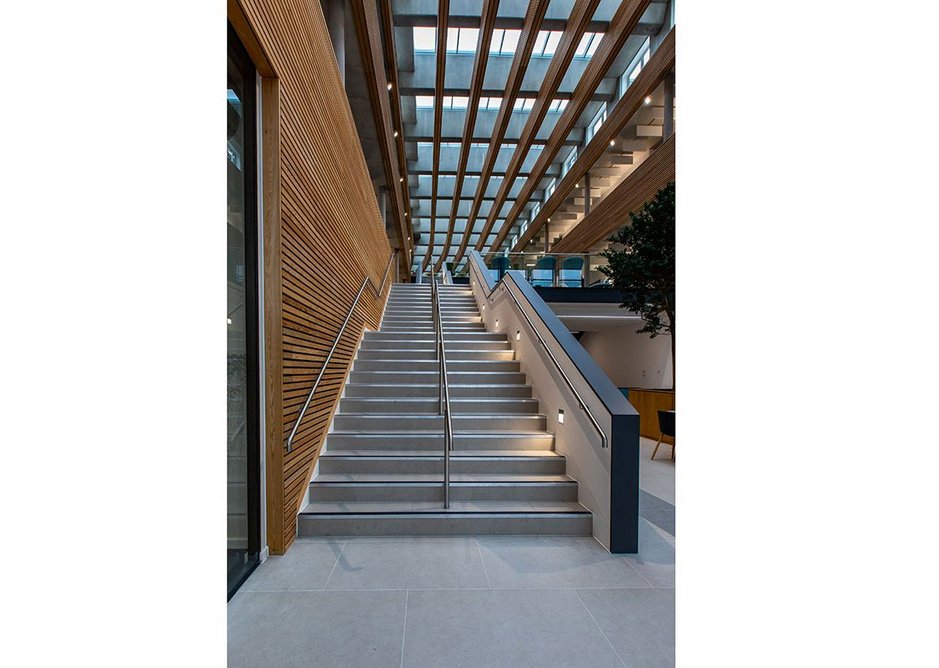

  • UKHO is a 11,000 square foot office space incorporating a central atrium where employees can communicate, collaborate and relax.
    UKHO is a 11,000 square foot office space incorporating a central atrium where employees can communicate, collaborate and relax.

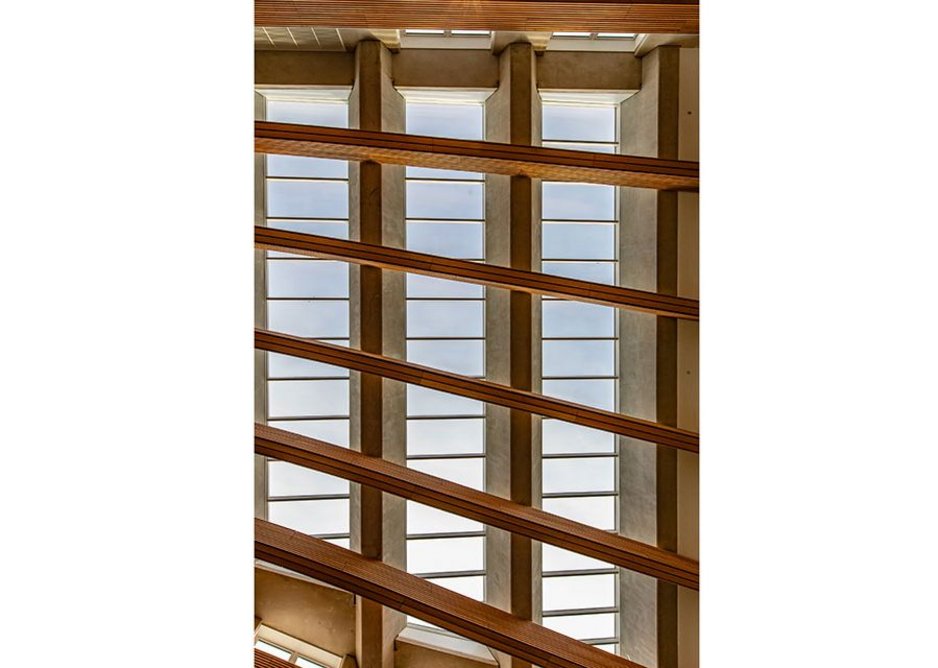

  • EN 17037 assessment of illuminance levels can be via either climate-based modelling or daylight factor calculations.
    EN 17037 assessment of illuminance levels can be via either climate-based modelling or daylight factor calculations.
1234

When does EN 17037 come into force?

As a European Standard, adoption of EN 17037 across member countries will be staggered, depending on when it is incorporated into national standard frameworks. In the UK, it becomes effective by the end of 2019 and any conflicting national standard (such as BS 8206-2) has to be withdrawn by mid-2019.

In the short term, this variation at the national level could mean confusion for anybody working on projects in different countries. They could find themselves applying the standard on one project, but not on another. In the long term, of course, the benefit will be that the requirements can be consistently applied. But even where designers and specifiers are only working in the UK market, it will still take time to get fully up to speed with the requirements of the new standard.

How will the provision of daylighting design be measured?

EN 17037 sets a minimum level of performance that must be achieved for each of the four areas of daylighting design, to provide flexibility for architects and designers, while also making the standard useable and understandable.

As well as the minimum recommendation, it also gives two further performance levels: medium and high. Users of the standard are free to select the performance level that best relates to the building design and proposed building use.

A simplified and detailed method is available for assessing each design area. The standard harmonises the evaluation of daylighting, but takes into account national and local conditions so that solutions are appropriate and specific to each project.

How will it affect how architects design for daylight and occupant comfort?

Daylight provision (or illuminance levels) allows users to carry out tasks and plays a part in the likelihood of artificial lighting being switched on. Assessment can be via either climate-based modelling or daylight factor calculations.

Building users should have a large and clear view of the outside. EN 17037 considers the width and outside distance of the view, as well as landscape ‘layers’ (sky, landscape and ground). The view should be perceived to be clear, undistorted and neutrally coloured. Width of view can be established via a detailed or simplified approach. Outside distance and number of layers are each measured by a single approach.

Calculating access or exposure to sunlight is a comfort and health factor for building users. Daily sunlight exposure can be established through detailed calculation or table values.

As its name suggests, prevention of glare is concerned with removing the probability of glare for building users, especially those who do not choose where they sit. It uses a detailed calculation of daylight glare probability or a standard table of values for sun-screening materials.

VELUX Commercial has spent time understanding the calculation methods detailed in EN 17037 in relation to rooflights and its experts are on hand to provide technical support and answer any questions about how its products can improve daylighting in your commercial project.

For more information and technical support, visit: velux.co.uk/commercial



Contact:

01592 778916
