Rippled facade makes waves in Hong Kong

Architect Vivien Fung used Equitone's Tectiva modular fibre cement panels to create a bespoke 3D effect for the city's Musuem of Art

In association with

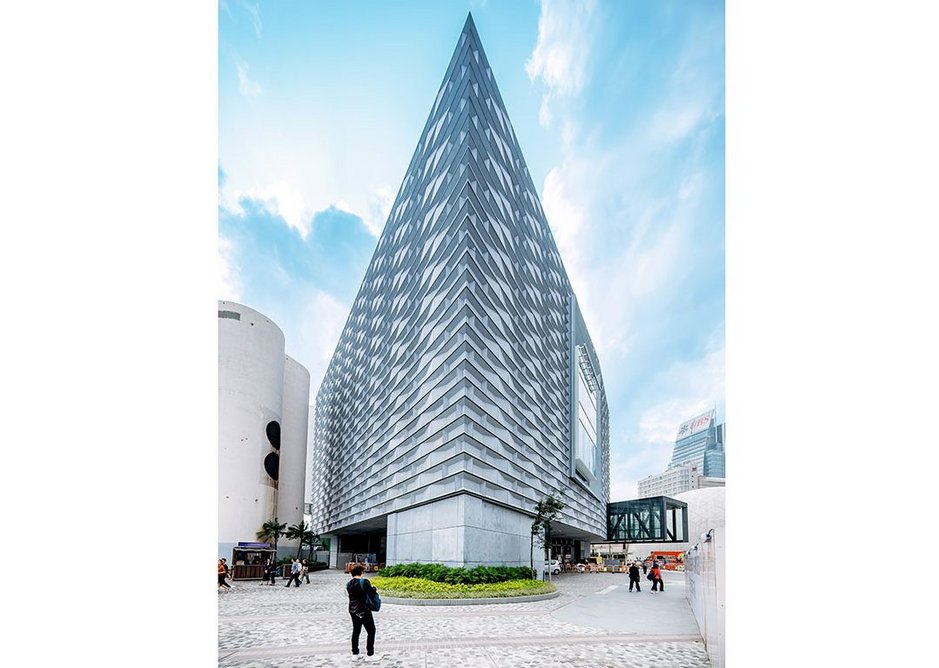

The Hong Kong Museum of Art: Angle cut and staggered, the 3D modules created from Tectiva fibre cement panels form shadow joints and a crisp geometric design.
The Hong Kong Museum of Art: Angle cut and staggered, the 3D modules created from Tectiva fibre cement panels form shadow joints and a crisp geometric design. Credit: Daniel Wong

Equitone has helped revitalise the Hong Kong Museum of Art with a new facade featuring its through-coloured Tectiva fibre cement panels.

The facade is part of a four-year renovation by Vivien Fung for the Hong Kong government’s Architectural Services Department. The large-scale plan is to increase the museum’s exhibition space by 40 per cent, adding 10,000 square metres to accommodate five new galleries.

The fibre cement panels form a contemporary 3D design built from prefabricated modules. They are mounted in different orientations, set vertically, splayed and parallel to the concrete construction below, giving the facade a unique, rippled effect that echoes Chinese masonry patterns and the waves of the Victoria Harbour, which the Museum overlooks.

Following the architect's concept, each 3D module was designed to be cut from one panel to minimise wastage. Each section consists of five separate pieces with angled cuts so, when fitted together, it forms a 3D module. An aluminium frame was made to support the module. This helped make the assembly of the module faster and kept the panels safe during transportation and fixing.

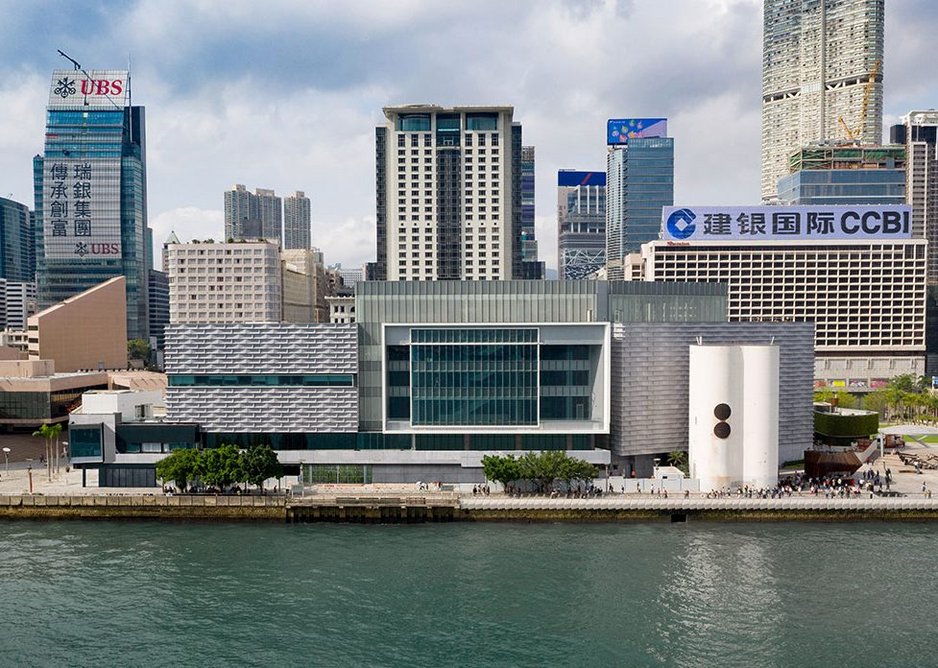

  • Hong Kong Museum of Art was established in 1962 and is the first public art museum in the city. It houses an art collection of over 17,000 items.
    Hong Kong Museum of Art was established in 1962 and is the first public art museum in the city. It houses an art collection of over 17,000 items. Credit: Daniel Wong

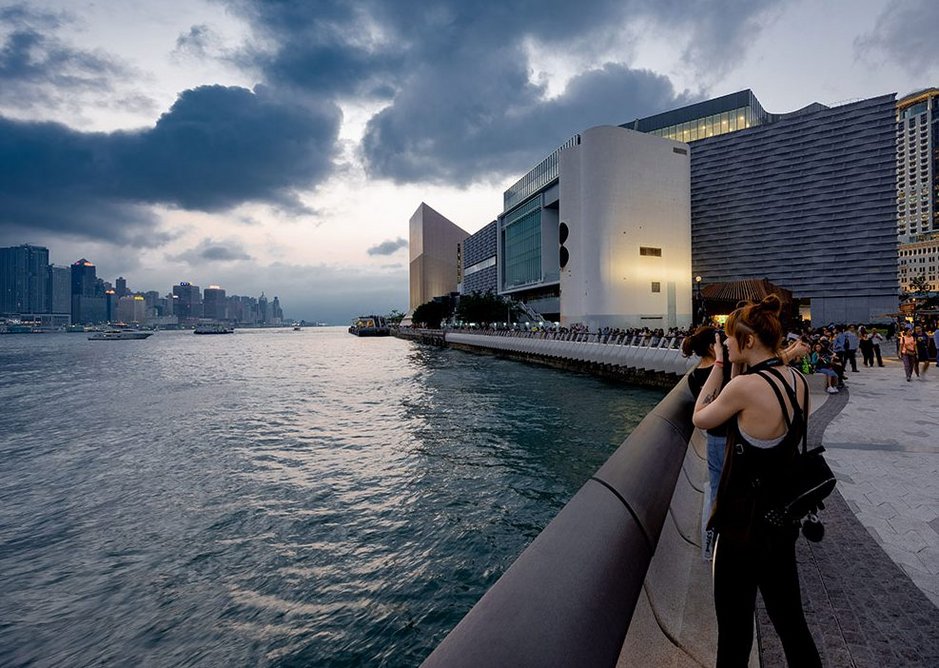

  • Credit: Daniel Wong

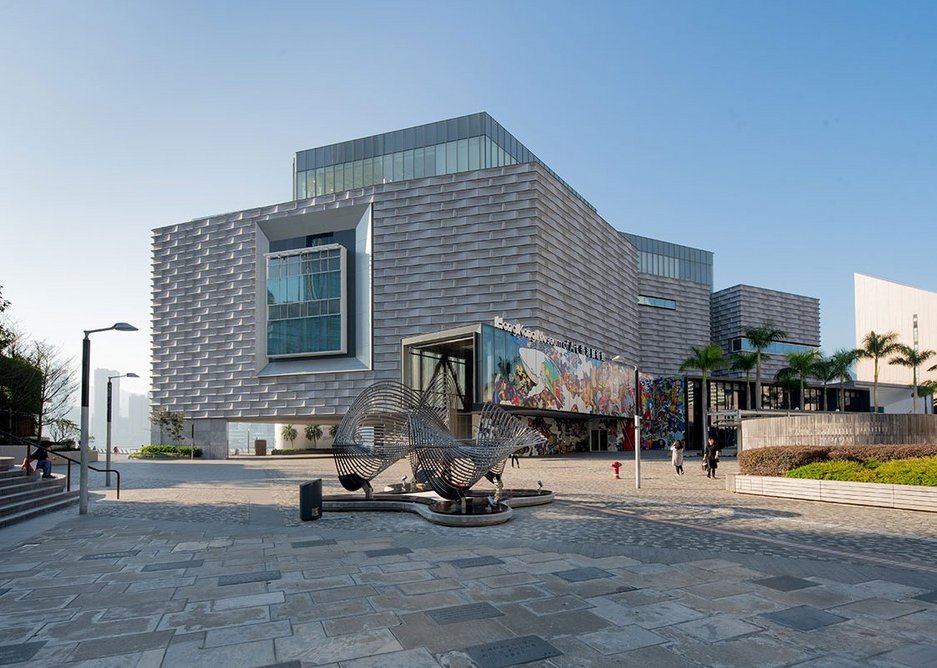

  • Credit: Daniel Wong
  • Credit: Daniel Wong
  • Credit: Daniel Wong
12345

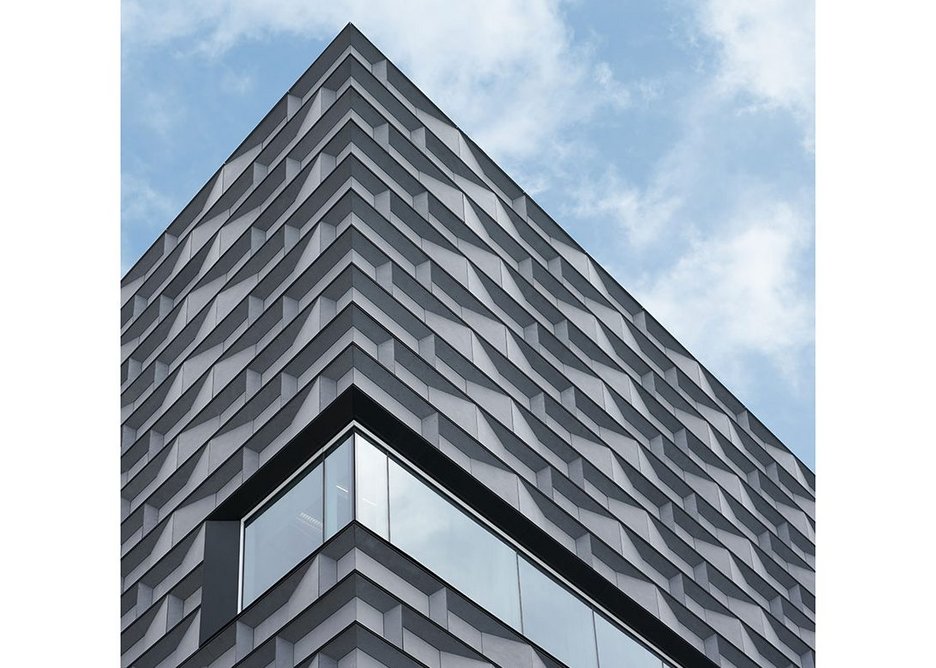

The prefabricated modules were then fixed to the reinforced concrete loadbearing structure and staggered in relation to each other. Each module creates shadow joints, which grab attention with their crisp geometric design.

Equitone's technical team supported architects and contractors throughout to ensure the original vision for the Museum was realised.

The modules were made off-site and delivered to the museum, reducing the time taken to fix the facade in a busy public area with high footfall. The Equitone Tectiva panels can also be taken down individually to facilitate any future works.

The low weight and robustness of Equitone's modular cladding has extended the life of the Hong Kong Museum of Art building, providing a whole new look while retaining the original structure. The project is testament to the need to refit, refurbish and renovate existing buildings and to the increasing demand for modular construction.

For more information and technical support, visit equitone.com
